Produktinformationen "Wall mounted charger 24V/DC 1000mAh - MSP-C-AH-00201"

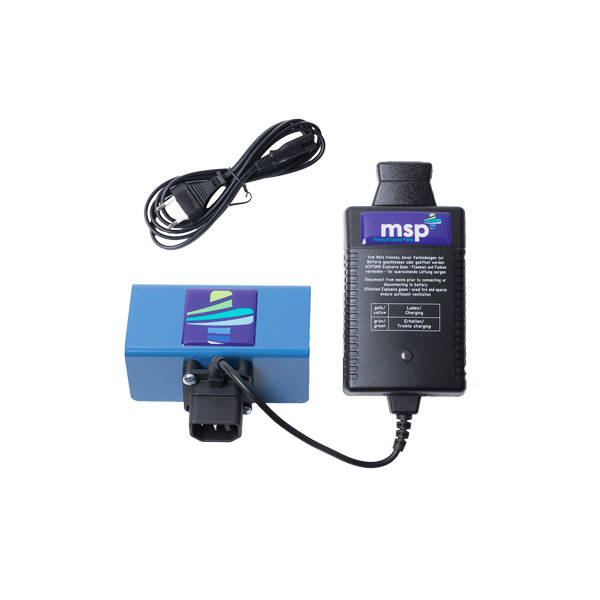

This battery charger has an output voltage of 24V/DC and an output current of 1000mA and is suited to charge our own MSP-A-AH-00100 and MSP-A-AH-00110 as well as the NDA0100/NDA0200 battery pack from Arjo.
The charger used has been designed specifically for medical purposes and therefore has all the certifications applicable to the medical directive.
This battery charger is a one on one replacement for the HMX987S/NDA8200/NDA1200 charger from Arjo and can be replaced without problems or modifications.

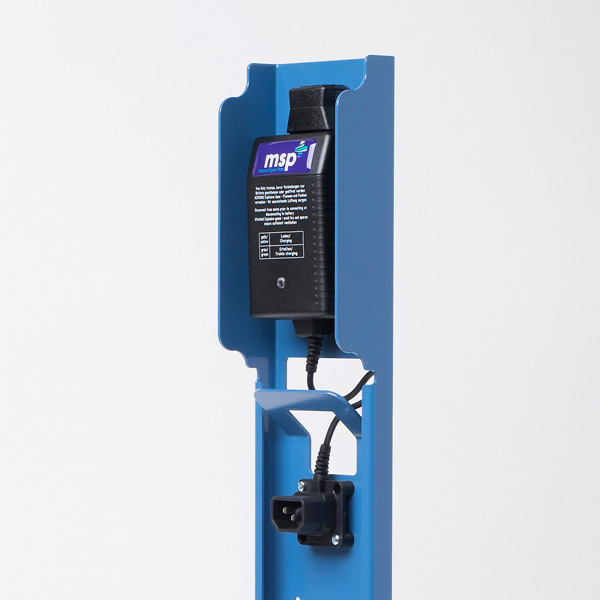

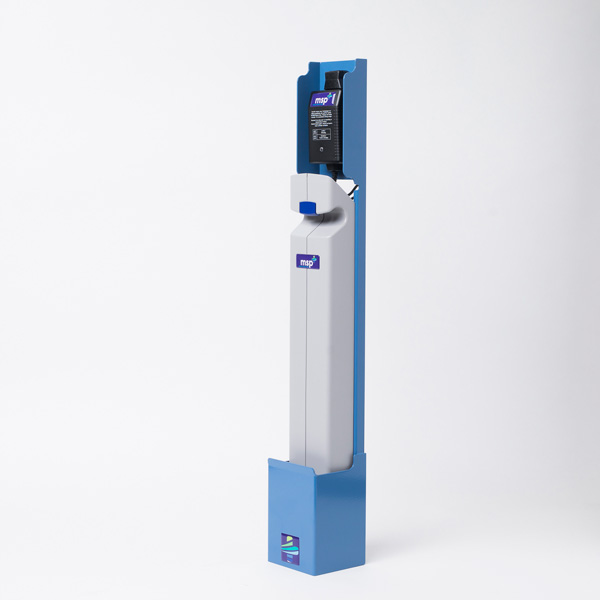

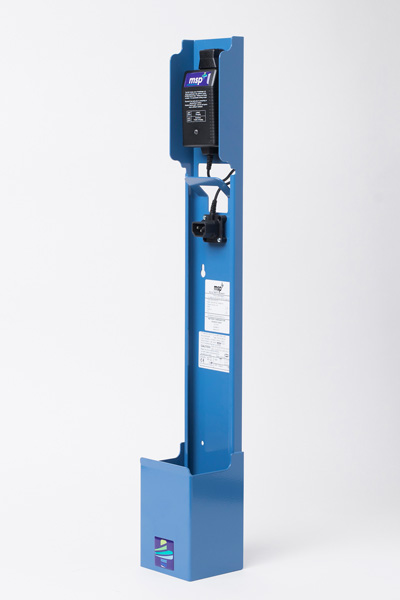

The sled is made of quality two millimeter thick steel and a protective bright looking coating. Thanks to the bucket the battery pack can't fall out of the charger.

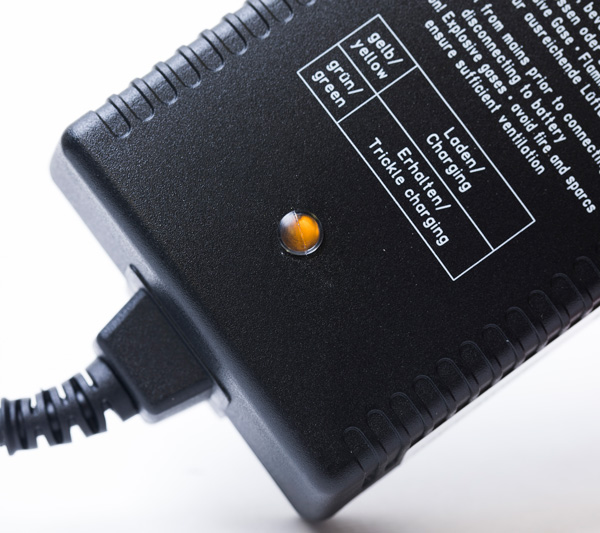

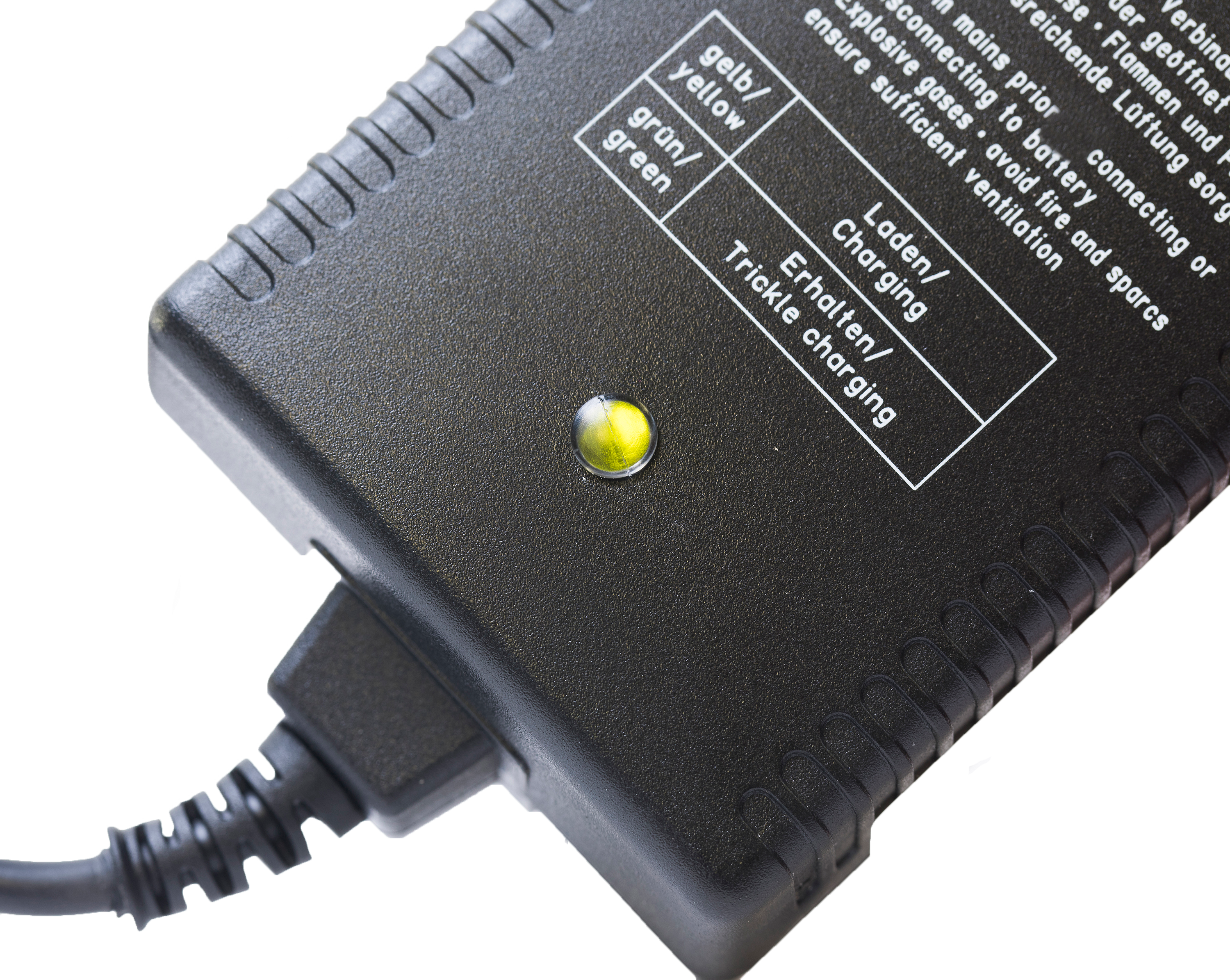

The charger itself is made of strong ABS plastic and comes with an indicative LED to easily see if the battery pack has been fully charged. Once the battery is fully charged, it will continue as a trickle charger.
More technical details can be found under the tab "Additional Information".
You can choose between a power cord for the EU, Great Brittain, Australia/New-Zealand and the USA.
The datasheet of this charger can be found under the tab "Documentation".
The Benefits
- High quality medically certified charger with charging LED
- 2mm metal sled for wall mounting with fall protection for the battery pack
- Compatible with our own MSP-A-AH-00100 and MSP-A-AH-00110 battery pack and Arjo's NDA0100 and NDA0200 battery pack
- MDR compliant
- This is an MSP charger and replaces the HMX987S/NDA8200 charger from Arjo
MSP, the smarter alternative. Always
Eigenschaften
| Produktnummer: | MSP-C-AH-00201 |
|---|---|
| Hersteller: | MSP |
| Ersetzt OEM Produktnummer: | NDA8200 NDA1200 HMX987 |
| EAN/GTIN: | 8719925310287 |
| Gewicht: | 1 kg |
| Länge: | 715 mm |
| Breite: | 100 mm |
| Höhe: | 45 mm |
| Eingangsspannung: | 90-264Vac |
| Geeignet für Ausrustung: | Patienten Lifter |
| Geeignet für OEM: | Arjo |
| Geeignet für Region: | EU |
| Ladestrom: | 1000mAh |
| Zertifizierung: | IEC60335-2-29, IEC60601-1, UL2601-1 |
| Geeignet für Modell: | Alenti, Bolero, Calypso, Marisa, Maxi 500, Maxi Move 3, Minstrel, Miranti, Sara 3000, Sara Flex, Sara Lite, Walker |
| Ausgangsspannung: | 24V/DC |
| Type of spare part: | Charger |
