Product Information
This battery charger has an output voltage of 24V/DC and an output current of 1000mA and is suited to charge our own MSP-A-AH-00500 and the KTA0102 battery pack from Arjo.
The charger used has been designed specifically for medical purposes and therefore has all the certifications applicable to the medical directive.
This battery charger is a replacement for the KTA0101 charger from Arjo and can be replaced without modifications.

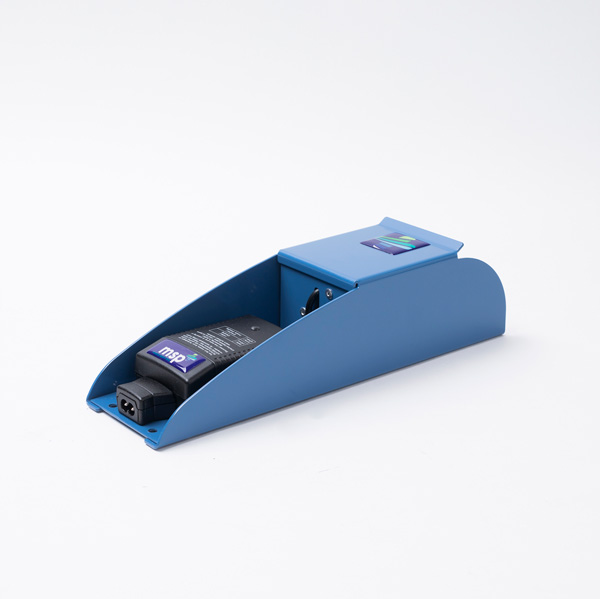

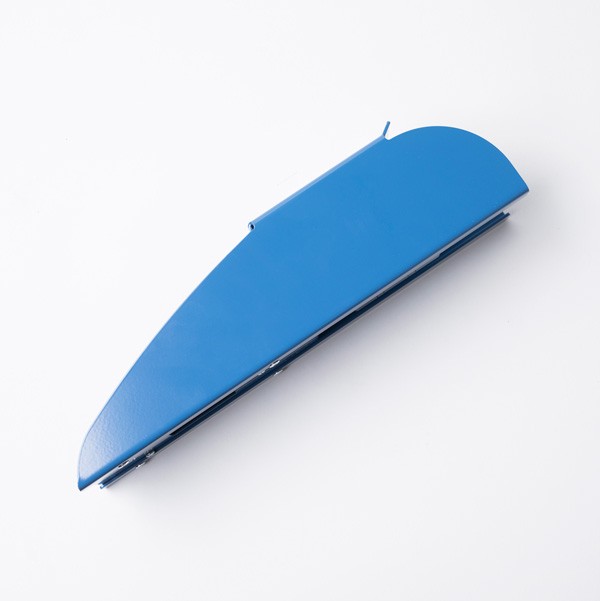

The sled is made of quality two millimeter thick steel and a protective bright looking coating. Thanks to the bucket the battery pack can't fall out of the charger.
The charger itself is made of strong ABS plastic and comes with an indicative LED to easily see if the battery pack has been fully charged. Once the battery is fully charged, it will continue as a trickle charger.
More technical details can be found under the tab "Additional Information".
You can choose between a power cord for the EU, Great Brittain, Australia/New-Zealand and the USA.
The datasheet of this charger can be found under the tab "Documentation".
The Benefits
- High quality medically certified charger with charging LED
- 2mm metal sled for wall mounting with fall protection for the battery pack
- Compatible with our own MSP-A-AH-00500 and Arjo's KTA0102 battery pack\
- MDR compliant
- This is an MSP charger and replaces the KTA0101 charger from Arjo
MSP, the smarter alternative. Always
Specifications
| Product number: | MSP-C-AH-00404 |
|---|---|
| Manufacturer: | MSP |
| EAN/GTIN: | 8719925310362 |
| Weight: | 1 kg |
| Certification: | IEC60335-2-29, IEC60601-1, UL2601-1 |
| Suited for Equipment: | Patient Hoists |
| Suited for OEM: | Arjo |
| Suited for region: | USA |
| Suited for Model: | Sarita, Trixie |
| Input Voltage: | 90-264Vac |
| Output Voltage: | 24V/DC |
| Charging current: | 1000mAh |
| Type of spare part: | Charger |
