Alpha 8478 series castor 8478UFC200P63
Product information "Alpha 8478 series castor 8478UFC200P63"

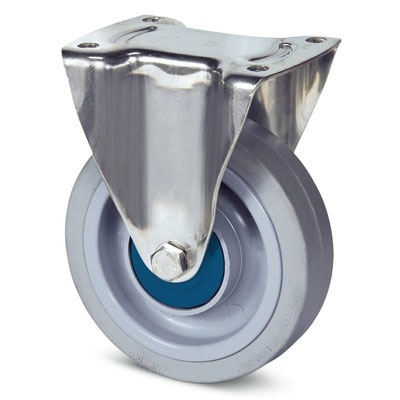

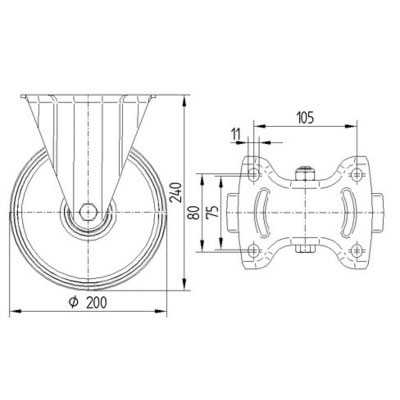

The Tente Alpha castor is suited for heavy duty applications within various hospital environments. MSP currently offers the Alpha 8478 series in a diameter of Ø100mm, Ø125mm, Ø160mm and Ø200mm in the UFC Elastech wheel tread and with plate fitting. This is a stainless steel fixed castor with no swivel functionality.
Please browse the brochure of the Alpha in the downloads sections for further details and information. Should you require a different fitting method, diameter or wheel tread, please contact us for the possibilities.
Select the desired wheel tread, diameter and plate fitting size above and you will be able to download the appropriate datasheet from the downloads section as well.
A complete overview of the specifications of the selected version can be found under the tab "Specifications".
View our complete range of castors.
More technical information can be found under "specifications".
The datasheet of the WHTEN050023 can be found under "downloads".
The advantages of the WHTEN050021-24
- Fixed castor with quit-running tread
- Fully made of stainless steel
- Stainless steel precision ball bearings in the wheel for smooth running
- Elastech (UFC) wheel tread with precision ball bearing
- TÜV Süd certified to EN 12532 and a dynamic load of up to 400kg
Order Alpha 8478 serie 8478UFC160P63 at MSP Medical
MSP is more than just a website to order products. Our team of experts has years of experience to guide you from A to Z in replacing your defective part.
- Save costs compared to original parts
- Fully MDR compliant parts
- Excellent technical support
- Ordered before 15:00 is shipped the same day
MSP, the smarter alternative. Always
Properties
| Certification: | EN 12532 |
|---|---|
| Field of Application: | Internal Transport, Kitchen Area, Laundry/Technical Area |
| Hardness of tread: | A 63 Shore |
| Static Load: | 800kg |
| Suited for Equipment: | Kitchen Equipment, Transport Carts, Tray Carts |
| Tyre Width: | 46mm |
| Tente Model Series: | Alpha |
| Wheel Diameter: | 200mm |
| Mounting method: | Plate fitting 137x115mm |
| Wheel tread: | UFC |
| Electrical Conductivity: | No (UFC) |
| Brake function: | Non-braked |
| Build Height: | 240mm |
| Stainless Steel Bearings: | Yes |
| Dynamic Load: | 400kg |
| Type of spare part: | Castor |
