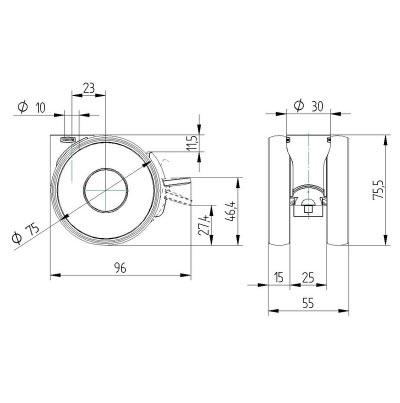

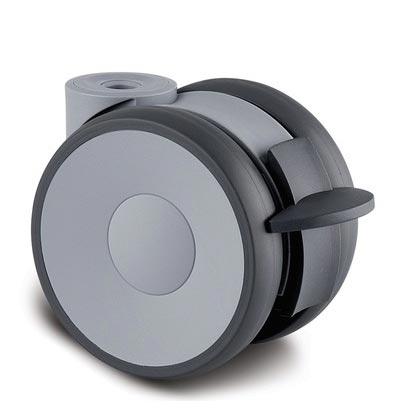

Product information "Linea 5925 series 5925XSP075L51-10 RAL7001"
The Pros
- Wheel braked castor
- Double precision ball bearing in the wheel
- Twin wheel castor for high load capacity
- Choose between Maxtech Precision (UAP) or Maxtech Precision Conductive (XSP) wheel treads
- TÜV Süd certified to EN 12530/12528 and a dynamic load of 100kg
Read more...
Description
The Tente Linea castor is suited for a wide range of equipment used in various hospital environments. MSP currently offers the Linea 5925 series in a diameter of Ø50 and Ø75mm in both the UAP Maxtech Precision and XSP Maxtech Precision Conductive wheel treads. This is a wheel braked castor, not a total lock castor which means the castor can still swivel.
Please browse the brochure of the Linea in the downloads sections for further details and information. Should you require a different fitting method, diameter or wheel tread, please contact us for the possibilities.
Select the desired wheel tread, diameter and housing color above and you will be able to download the appropriate datasheet from the downloads section as well.

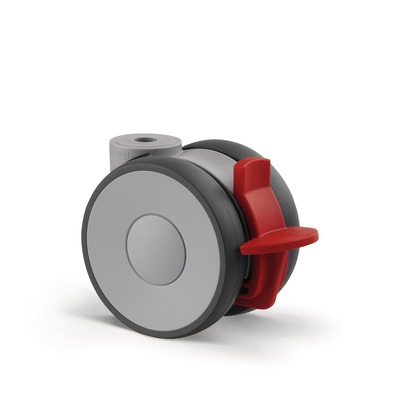

If you are looking for the 5925 series with kick pedal, please look at the alternative products section.
A complete overview of the specifications of the selected version can be found under the tab "Specifications".
MSP, the smarter alternative. Always!

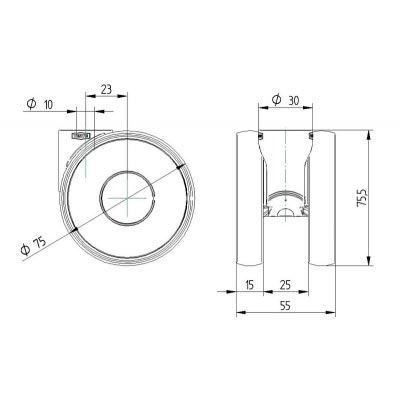

Specifications
| Product number: | WHTEN010063 |
|---|---|
| Manufacturer: | Tente |
| Replaces OEM Product Number: | 5925XSP075L51-10 RAL7001 |
| EAN/GTIN: | 4031582399134 |
| Weight: | 0.199 kg |
| Certification: | EN 12528 |
| Field of Application: | Emergency Room, Homecare Room, Nursing Room, Operating Room, Patient Room, Radiology Room |
| Hardness of tread: | A 92 Shore |
| Offset: | 32mm |
| Static Load: | 200kg |
| Suited for Equipment: | Bedside Tables, Drawer Cabinet, Incubator, Instrument Carts, Medication Carts, Mobile Furniture, Tray Carts, Ultrasound Carts |
| Swivel radius: | 81mm |
| Tyre Width: | 15mm |
| Tente Model Series: | Linea |
| Wheel Diameter: | 75mm |
| Mounting method: | Blind Hole L51-10 |
| Wheel tread: | XSP |
| Housing Color: | RAL7001 |
| Electrical Conductivity: | Yes (XSP) |
| Brake function: | Braked |
| Build Height: | 75.5mm |
| Stainless Steel Bearings: | No |
| Dynamic Load: | 100kg |
| Type of spare part: | Castor |
