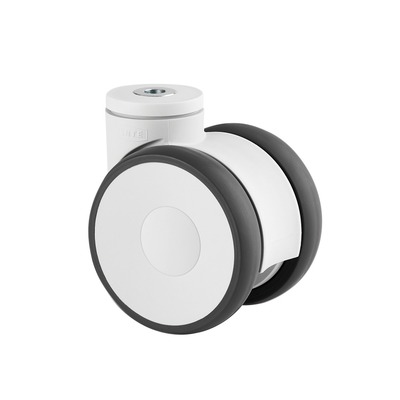

Linea 5940 series 5940UAP100P30-13 RAL9002

Linea 5940 series 5940UAP100P30-13 RAL9002

Product number: WHTEN010019
Manufacturer: Tente
Replaces OEM Product Number: 5940UAP100P30-13 RAL9002
EAN/GTIN: 4031582338713
See all specifications

incl. VAT €36.24

Excl. VAT €29.95
Electrical Conductivity
Housing Color
Mounting method
Wheel Diameter
Shipping within 24h
All parts are MDR compliant
Purchase comfortable on account
Customer Service: + 31 88 0531000

Product Information

The Pros

  • Non-braked castor with non-striping tread
  • Double precision ball bearing in swivel head and wheel
  • Twin wheel castor for high load capacity
  • Choose between Maxtech Precision (UAP) or Maxtech Precision Conductive (XSC) wheel treads
  • TÜV Süd certified to EN 12530 and a dynamic load of up to 150kg
Read more...

Description

The Tente Linea castor is suited for a wide range of equipment used in various hospital environments. MSP currently offers the Linea 5940 series in a diameter of Ø100 and Ø125mm in both the UAP Maxtech Precision and XSC Maxtech Precision Conductive wheel treads.

Please browse the brochure of the Linea in the downloads sections for further details and information. Should you require a different fitting method, diameter or wheel tread, please contact us for the possibilities.

Select the desired wheel tread, diameter, bolt hole size and housing color above and you will be able to download the appropriate datasheet from the downloads section as well.

 A complete overview of the specifications of the selected version can be found under the tab "Specifications".

MSP, the smarter alternative. Always!

Specifications

Technical Specifications "Linea 5940 series 5940UAP100P30-13 RAL9002"
Product number: WHTEN010019
Manufacturer: Tente
Replaces OEM Product Number: 5940UAP100P30-13 RAL9002
EAN/GTIN: 4031582338713
Weight: 0.6 kg
Certification: EN 12530
Field of Application: Emergency Room, Homecare Room, Nursing Room, Operating Room, Patient Room, Radiology Room
Hardness of tread: A 92 Shore
Offset: 32mm
Static Load: 240kg
Suited for Equipment: Bedside Tables, Console PC, Drawer Cabinet, Instrument Carts, Mobile Furniture, Mobile X-Ray Unit, Surgical Carts, Tray Carts, Ultrasound Carts
Swivel radius: 90mm
Tyre Width: 20mm
Tente Model Series: Linea
Wheel Diameter: 100mm
Mounting method: Bolt Hole Ø13mm
Wheel tread: UAP
Housing Color: RAL9002
Electrical Conductivity: No (UAP)
Brake function: Non-braked
Build Height: 118mm
Stainless Steel Bearings: No
Dynamic Load: 120kg
Type of spare part: Castor
See allSee less
Data according to manufacturer. Errors and changes reserved.

Downloads

5940UAP100P30-13 RAL9002

Linea 5940 series 100mm Ø13mm UAP

Important Information
The items shown in this catalog are by default NOT original parts unless they are expressly marked as such. Fig. and OE no. are for comparison purposes only and may differ / All logos, brand names and trademarks used are the property of their owners. MSP does not have a commercial and/or economical link with the mentioned OEM's.
