Product Information

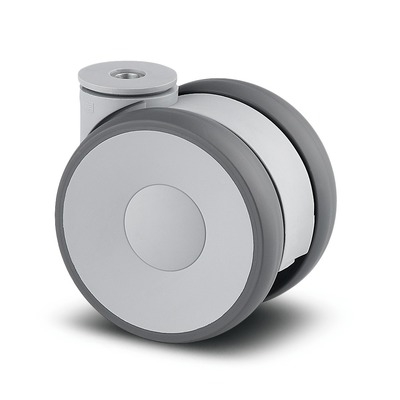

Product information "Linea 5940 series low build height 5940UAP075P30-10 LH RAL7001"
The Pros
- Non-braked castor with non-striping tread
- Double precision ball bearing in swivel head and wheel
- Twin wheel castor for high load capacity
- Choose between Maxtech Precision (UAP) or Maxtech Precision Conductive (XSC) wheel treads
- Low build height version
- TÜV Süd certified to EN 12530 and a dynamic load of up to 150kg
Read more...
Description
The Tente Linea castor is suited for a wide range of equipment used in various hospital environments. MSP currently offers the Linea 5940 series in a diameter of Ø75 and Ø100mm in both the UAP Maxtech Precision and XSC Maxtech Precision Conductive wheel treads. This model has low build height which is only 3mm more than the wheel diameter. If you are looking for the regular 5940 series, please check our alternative products section.
Please browse the brochure of the Linea in the downloads sections for further details and information. Should you require a different fitting method, diameter or wheel tread, please contact us for the possibilities.
Select the desired wheel tread, diameter, bolt hole size and housing color above and you will be able to download the appropriate datasheet from the downloads section as well.
A complete overview of the specifications of the selected version can be found under the tab "Specifications".
MSP, the smarter alternative. Always!
Specifications
| Product number: | WHTEN010012 |
|---|---|
| Manufacturer: | Tente |
| Replaces OEM Product Number: | 5940UAP075P30-10 LH RAL7001 |
| EAN/GTIN: | 4031582373004 |
| Weight: | 0.214 kg |
| Certification: | EN 12530 |
| Field of Application: | Nursing Room |
| Hardness of tread: | A 92 Shore |
| Offset: | 23mm |
| Static Load: | 180kg |
| Suited for Equipment: | Console PC |
| Swivel radius: | 61mm |
| Tyre Width: | 15mm |
| Tente Model Series: | Linea |
| Wheel Diameter: | 75mm |
| Mounting method: | Bolt hole |
| Wheel tread: | UAP |
| Housing Color: | RAL7001 |
| Electrical Conductivity: | No (UAP) |
| Brake function: | Non-braked |
| Build Height: | 78mm |
| Stainless Steel Bearings: | No |
| Dynamic Load: | 90kg |
| Type of spare part: | Castor |
