Product Information
Product information "Linea 5946 series 2-way low build height 5946UAC125R36-32S30OH130"
The Pros
- User friendly central locking possibility
- Double precision ball bearing in the swivel head and wheel bearings
- 2-way castor: Total lock and swivel
- Low build height
- Available with Maxtech (UAP) or Maxtech Conductive (UAC) wheel tread
- TÜV Süd certified to EN 12531 and a dynamic load of 150kg
Read more...
Description

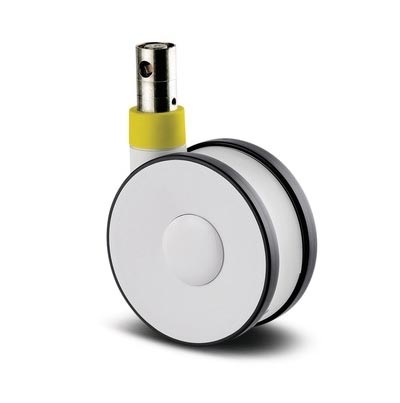

The Tente Linea castor is suited for a wide range of medical beds. MSP currently offers the Linea 5946 series in a diameter of Ø125mm and Ø150mm in both the UAP and USC Maxtech wheel treads. The 5946 series is a 2-way castor with central total lock and swivel functionality.
Please browse the brochure of the Linea Clinic castors in the downloads sections for further details and information. Should you require a different fitting method or wheel tread, please contact us for the possibilities.
Select the desired wheel tread and diameter above and you will be able to download the appropriate datasheet from the downloads section as well.
If you are looking for the 5946 series with regular build height, please navigate to our alternative products section.
A complete overview of the specifications of the selected version can be found under the tab "Specifications".
MSP, the smarter alternative. Always!
Specifications
| Product number: | WHTEN010040 |
|---|---|
| Manufacturer: | Tente |
| Replaces OEM Product Number: | 5946UAC125R36-32S30OH130 RAL9002 4xM6 |
| EAN/GTIN: | 4031582359985 |
| Weight: | 0.939 kg |
| Certification: | EN 12531 |
| Field of Application: | Nursing Room |
| Hardness of tread: | D 42 Shore |
| Offset: | 40mm |
| Static Load: | 300kg |
| Stem length: | 50mm |
| Suited for Equipment: | Beds |
| Swivel radius: | 108mm |
| Tyre Width: | 15mm |
| Tente Model Series: | Linea 2-way |
| Wheel Diameter: | 125mm |
| Mounting method: | Stem |
| Wheel tread: | UAC |
| Electrical Conductivity: | No (UAC) |
| Brake function: | Braked |
| Build Height: | 130mm |
| Stainless Steel Bearings: | Yes |
| Dynamic Load: | 150kg |
| Type of spare part: | Castor |
