Product Information
The Pros
- High quality castor
- Original spare part
- Fully compatible with the Adam and Levi series working chairs
- Fully compatible with the Boxer series working chairs
- High precision double ball bearings
Read more...
Description

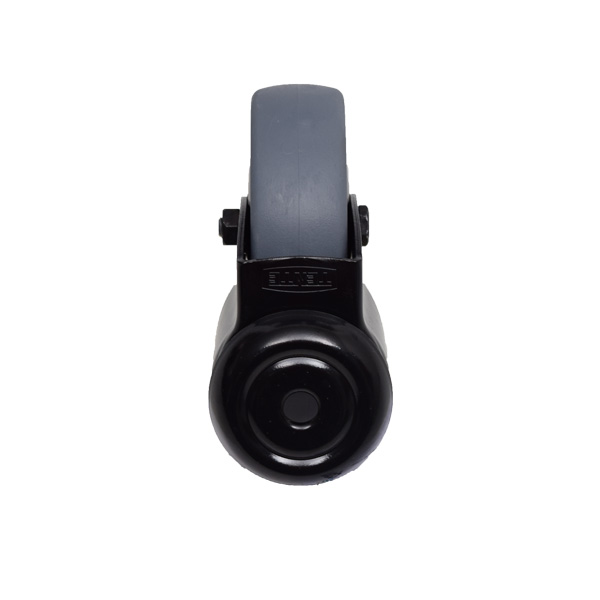

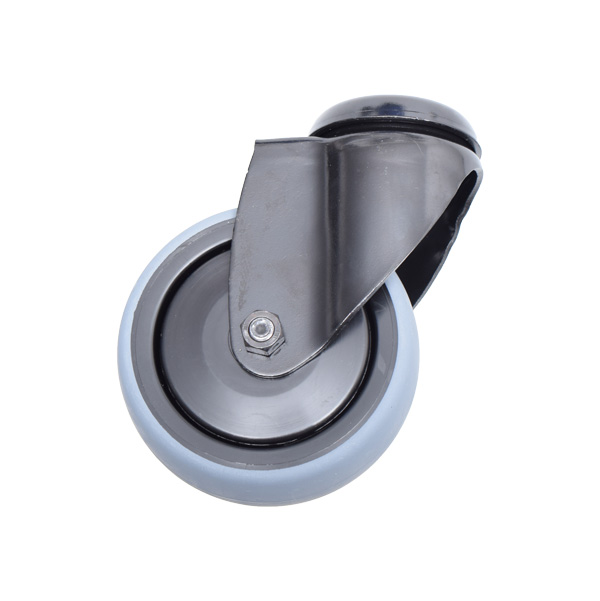

This castor is an original spare part and can be used on the Adam and Levi series working chairs from MSP and also the Boxer series working chairs from Doge Collection. This is a non-braked swivel model and can be used as a front castor.
The castor is made of high quality materials and has high precision double ball bearings. The diameter of this castor is 100mm with a build height of 138mm.
More technical details can be found under the tab "Additional Information".
The datasheet of this castor can be found under the tab "Documentation".
MSP, the smarter alternative. Always
Specifications
Technical Specifications "Swivel Castor 100mm for MSP for working chairs"
| Product number: | MSP-WH-MP-00100 |
|---|---|
| Manufacturer: | MSP |
| EAN/GTIN: | 8719925317330 |
| Weight: | 1 kg |
| Certification: | EN 12530 |
| Hardness of tread: | A 87 Shore |
| Offset: | 38mm |
| Static Load: | 200kg |
| Suited for Equipment: | Working Chairs |
| Suited for OEM: | Doge Collection, MSP |
| Swivel radius: | 88mm |
| Tyre Width: | 32mm |
| Suited for Model: | Adam, Adam Flex, Adam Plus, Boxer Flexible, Boxer MAG4, Boxer MG2, Boxer Plus, Levi |
| Wheel Diameter: | 100mm |
| Mounting method: | Bolt hole |
| Wheel tread: | PJP |
| Electrical Conductivity: | No (PJP) |
| Brake function: | Non-braked |
| Build Height: | 138mm |
| Stainless Steel Bearings: | No |
| Dynamic Load: | 100kg |
| Type of spare part: | Castor |
Data according to manufacturer. Errors and changes reserved.
