Product Information
The Pros
- Total braked castor for maximum stability
- Two ball races in the swivel head for easy steering
- Precision ball bearings in the wheel for smooth running
- Elastech (UFP) wheel tread with precision ball bearing
- TÜV Süd certified to EN 12532 and a dynamic load of up to 400kg
Read more...
Description

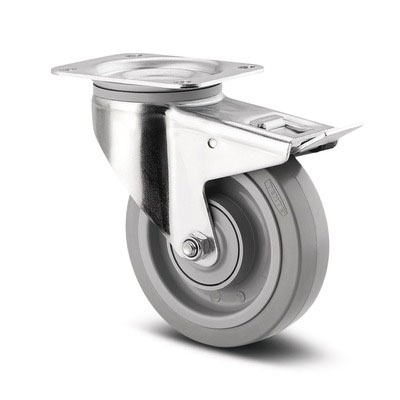

The Tente Alpha castor is suited for heavy duty applications within various hospital environments. MSP currently offers the Alpha 3477 series in a diameter of Ø100mm, Ø125mm, Ø160mm and Ø200mm in the UFP Elastech wheel tread and with plate fitting. This is a total lock castor and locks both the wheel and swivel head.
Please browse the brochure of the Alpha in the downloads sections for further details and information. Should you require a different fitting method, diameter or wheel tread, please contact us for the possibilities.
Select the desired wheel tread, diameter and plate fitting size above and you will be able to download the appropriate datasheet from the downloads section as well.
A complete overview of the specifications of the selected version can be found under the tab "Specifications".
MSP, the smarter alternative. Always!
Specifications
| Product number: | WHTEN050005 |
|---|---|
| Manufacturer: | Tente |
| Replaces OEM Product Number: | 3477UFP100P62 |
| EAN/GTIN: | 4031582396010 |
| Weight: | 0.968 kg |
| Certification: | EN 12532 |
| Field of Application: | Internal Transport, Kitchen Area, Laundry/Technical Area |
| Hardness of tread: | A 63 Shore |
| Offset: | 41mm |
| Static Load: | 320kg |
| Suited for Equipment: | Kitchen Equipment, Transport Carts, Tray Carts |
| Swivel radius: | 123mm |
| Tyre Width: | 34mm |
| Tente Model Series: | Alpha |
| Wheel Diameter: | 100mm |
| Mounting method: | Plate fitting 105x80mm |
| Wheel tread: | UFP |
| Electrical Conductivity: | No (UFP) |
| Brake function: | Braked |
| Build Height: | 128mm |
| Stainless Steel Bearings: | No |
| Dynamic Load: | 160kg |
| Type of spare part: | Castor |
