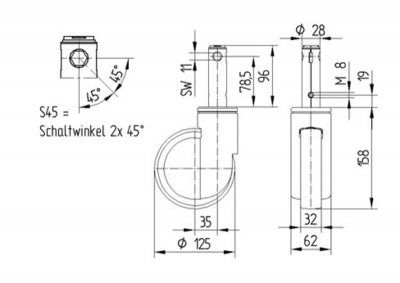

Integral 2044 serie 3-way 2044UAP125R26-28S45
Product number:
WHTEN020014
Manufacturer:
Tente
Replaces OEM Product Number:
2044UAP125R26-28S45 RAL9002 4xM8
EAN/GTIN:
4031582300161
Product Information
Product information "Integral 2044 serie 3-way 2044UAP125R26-28S45"
The Pros
- Improved stability through directional lock functionality
- User friendly central locking possibility
- Precision ball bearing in the swivel bearing
- 3-way castor: Directional lock, total lock, swivel
- The XSX versions are made with the Maxtech conductive wheel tread
- TÜV Süd certified to EN 12531 and a dynamic load of 150kg
Read more...
Description

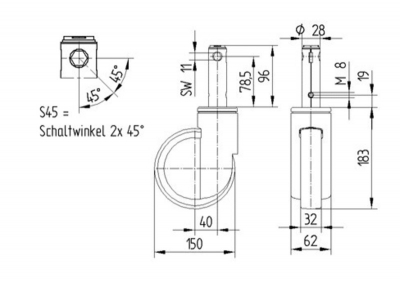

The Tente Integral castor is suited for a wide range of medical beds and appliances. MSP currently offers the Integral 2044 series in a diameter of Ø125mm, Ø150mm and Ø200mm in both the UAP (200mm in UAX) and XSX Maxtech wheel treads.
Please browse the brochure of the Integral in the downloads sections for further details and information. Should you require a different fitting method or wheel tread, please contact us for the possibilities.
Select the desired wheel tread and housing colour above and you will be able to download the appropriate datasheet from the downloads section as well.
A complete overview of the specifications of the selected version can be found under the tab "Specifications".
MSP, the smarter alternative. Always!
Specifications
Properties "Integral 2044 serie 3-way 2044UAP125R26-28S45"
Product number: | WHTEN020014 |
---|---|
Manufacturer: | Tente |
Replaces OEM Product Number: | 2044UAP125R26-28S45 RAL9002 4xM8 |
EAN/GTIN: | 4031582300161 |
Weight: | 0.975 kg |
Available stock: | 4 |
Certification: | EN 12531 |
Field of Application: | Emergency Room, Homecare Room, Nursing Room, Patient Room |
Hardness of tread: | D 42 Shore |
Offset: | 35mm |
Static Load: | 300kg |
Stem length: | 96mm |
Suited for Equipment: | Birthing Beds, Homecare Beds, Hospital Beds, Nursing Beds |
Swivel radius: | 98mm |
Tyre Width: | 32mm |
Tente Model Series: | Integral 3-way |
Wheel Diameter: | 125mm |
Mounting method: | Stem |
Wheel tread: | UAP |
Electrical Conductivity: | No (UAP) |
Brake function: | Braked |
Build Height: | 158mm |
Dynamic Load: | 150kg |
Type of spare part: | Castor |
Data according to manufacturer. Errors and changes reserved.
